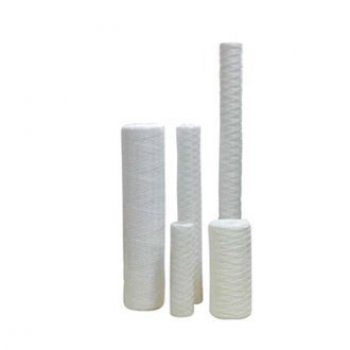

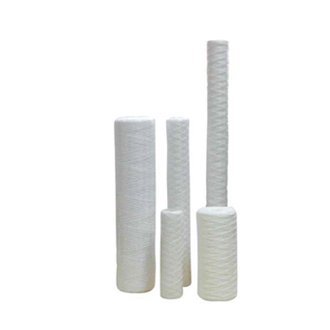

Cartuchos Bobinados de Prolipropileno - Série CBPI
- Os cartuchos bobinados são uma solução efetiva para retenção de areia, escamas de ferrugem, barro e outras partículas contaminantes. Fabricados com cordões de polipropileno estes cartuchos podem trabalhar a temperaturas entre 4,5°C a 52°C.
- Estes cartuchos são apropriados para trabalhar em larga variedade de aplicações residenciais e comerciais. Os diferentes padrões de cordão e tensão de enrolamento utilizados em sua construção permitem obter as diferentes micragens ou graus de rentenção.
Dimensões nominais |
Denominação básica |
Micragem |
Quantidade por caixa |
Dimensão da caixa (cm) |
Peso (Kg) |
10" x 2-1/2" | CBPI10/2-1M |
1 | 40 | 33 x 28 x 53,4 | 9,1 |
CBPI10/2-5M | 5 | 40 | 33 x 28 x 53,4 | 8,6 | |
CBPI10/2-10M | 10 | 40 | 33 x 28 x 53,4 | 8,6 | |
CBPI10/2-20M | 20 | 40 | 33 x 28 x 53,4 | 8,6 |
|
CBPI10/2-30M | 30 | 40 | 33 x 28 x 53,4 | 8,6 |
|
CBPI10/2-50M | 50 | 40 | 33 x 28 x 53,4 | 8,6 | |
CBPI10/2-100M(*) | 100 | 40 | 33 x 28 x 53,4 | 8,6 | |
20" x 2-1/2" | CBPI20/2-1M | 1 |
20 | 33 x 28 x 53,4 | 9,1 |
CBPI20/2-5M | 5 | 20 | 33 x 28 x 53,4 | 8,6 | |
CBPI20/2-10M | 10 | 20 | 33 x 28 x 53,4 | 8,6 | |
CBPI20/2-20M | 20 | 20 | 33 x 28 x 53,4 | 8,6 | |
CBPI20/2-30M | 30 | 20 | 33 x 28 x 53,4 | 8,6 | |
CBPI20/2-50M | 50 | 20 | 33 x 28 x 53,4 | 8,6 | |
CBPI20/2-100M(*) | 100 | 20 | 33 x 28 x 53,4 | 8,6 | |
30" x 2-1/2" | CBPI30/2-1M | 1 |
20 | 78,7 x 28 x 33 | 14,5 |
CBPI30/2-5M | 5 | 20 |
78,7 x 28 x 33 | 14,5 | |
CBPI30/2-10M | 10 | 20 | 78,7 x 28 x 33 | 14,5 | |
CBPI30/2-20M | 20 | 20 | 78,7 x 28 x 33 | 14,5 | |
CBPI30/2-30M | 30 | 20 | 78,7 x 28 x 33 | 14,5 | |
CBPI30/2-50M | 50 | 20 | 78,7 x 28 x 33 | 14,5 | |
CBPI30/2-100M(*) | 100 | 20 | 78,7 x 28 x 33 | 14,5 | |
40" x 2-1/2" | CBPI40/2-1M | 1 |
20 | 104,1 x 28 x 33 | 19,9 |
CBPI40/2-5M | 5 | 20 | 104,1 x 28 x 33 | 19,9 | |
CBPI40/2-10M | 10 | 20 | 104,1 x 28 x 33 | 19,9 | |
CBPI40/2-20M | 20 | 20 | 104,1 x 28 x 33 | 19,9 | |
CBPI40/2-30M | 30 | 20 | 104,1 x 28 x 33 | 19,9 | |
CBPI40/2-50M | 50 | 20 | 104,1 x 28 x 33 | 19,9 | |
CBPI40/2-100M(*) | 100 | 20 | 104,1 x 28 x 33 | 19,9 | |
10" x 4-1/2" | CBPI10/4-1M | 1 |
12 | 35,6 x 25,4 x 53,4 | 10,9 |
CBPI10/4-5M | 5 | 12 |
35,6 x 25,4 x 53,4 | 10,4 | |
CBPI10/4-10M | 10 | 12 | 35,6 x 25,4 x 53,4 | 10,4 | |
CBPI10/4-20M | 20 | 12 | 35,6 x 25,4 x 53,4 | 10,4 | |
CBPI10/4-30M | 30 | 12 | 35,6 x 25,4 x 53,4 | 10,4 | |
CBPI10/4-50M | 50 | 12 | 35,6 x 25,4 x 53,4 | 10,4 | |
CBPI10/4-100M(*) | 100 | 12 | 35,6 x 25,4 x 53,4 | 10,4 | |
20" x 4-1/2" | CBPI20/4-1M | 1 |
6 | 35,6 x 25,4 x 53,4 | 10,9 |
CBPI20/4-5M | 5 | 6 | 35,6 x 25,4 x 53,4 | 10,4 | |
CBPI20/4-10M | 10 | 6 | 35,6 x 25,4 x 53,4 | 10,4 | |
CBPI20/4-20M | 20 | 6 | 35,6 x 25,4 x 53,4 | 10,4 | |
CBPI20/4-30M | 30 | 6 | 35,6 x 25,4 x 53,4 | 10,4 | |
CBPI20/4-50M | 50 | 6 | 35,6 x 25,4 x 53,4 | 10,4 | |
CBPI20/4-100M(*) | 100 | 6 | 35,6 x 25,4 x 53,4 | 10,4 | |
Sob encomenda em caixas fechadas.
- CÓDIGO DA DENOMINAÇÃO:
CBPI | 10 | / | 2 | 1M | * |
a | b |
|
c | d | e |
a > Prefixo do grupo de produtos (Cartucho bobinado)
b > Altura nominal (10 = 10" e 20 = 20")
c > Diâmetro nominal (2 = 2-1/2" e 4 = 4-1/2")
d > Micragem:(1, 5, 10, 20, 30, 50 ou 100 Micra)
e >Código interno
